| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | HongCe |
| Chứng nhận: | Calibration Certificate(cost additional) |
| Số mô hình: | HJ113 |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
|---|---|
| Giá bán: | Negotiation |
| chi tiết đóng gói: | ván ép |
| Thời gian giao hàng: | 3 tháng |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 1 bộ mỗi tháng |
| Sự bảo đảm: | 12 tháng | phôi: | Thành phần gốm của rơle |
|---|---|---|---|
| Áp suất làm đầy cho gói: | 2～2,5 kpa | Áp suất sơ tán cho gói: | -2～-3 kpa |
| khí đánh dấu: | heli | Tỷ lệ rò rỉ báo động: | 1.44E-4mbar.L/S |
| Đi xe đạp: | ≤2 phút | Chê độ kiểm tra: | súng hút |
| Điểm nổi bật: | Ceramic Component Helium Leak Testing Equipment,11pa·m3/s Helium Leak Testing Equipment |
||

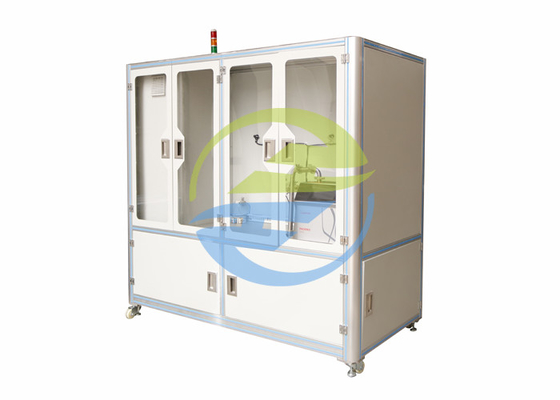

Helium Leak Testing Equipment For Ceramic Component Of Relay 5×10-11pa·m3/S
This equipment is used to test the sealing performance of ceramic components of new energy car relay products.
Overview of Helium Leak Testing Equipment:

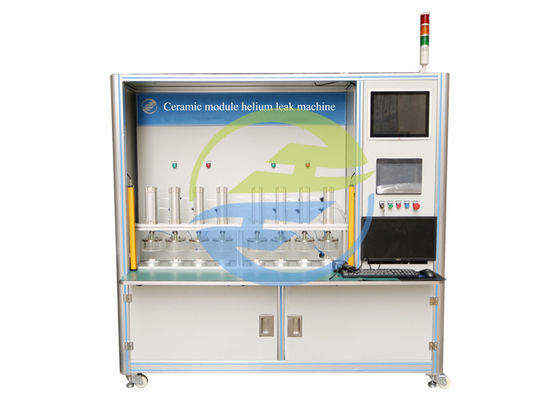

The leak testing equipment for ceramic components is displayed and controlled by touch screen and button switch. Workpieces are placed manually. Two stations are designed, and each station detects four products at the same time. Products with different specifications can be detected by changing the leak detection fixture. When the system detects the leak, the workpiece to be detected is manually placed on the leak detection tool, and the leak detection tool is communicated with the leak detector through the leak detection switching valve. After the workpiece is placed and positioned, the cylinder descends to push the helium nozzle to press the workpiece. Then start the auxiliary pump and start vacuumizing the interior of the workpiece. Then the leak detector continues to take time to clear the background. When the leak detector reaches the background value, the equipment is sprayed with helium.The leak detector judges the leak rate according to the helium gas infiltration.
Technical parameters of Helium Leak Testing Equipment:
| Min detectable leak rate: | 5×10-11pa·m3/s. |
| Leak rate display range: | 1×10-2 -----1×10-11Pa· m3/s |
| Start time: | ≤ 100s |
| Response time: | ≤ 0.3s |
| Max pressure of leak detector: | 2000Pa |
| Power requirement: | AC220V±10%/50Hz |
| Leakage rate unit: | Pa·m3/s, ppm,mbar·l/s,atm.cc/s |
| Display interface: | Large screen 7.0 inch touch screen display, clear and easy to understand operation interface. |
