| Tên thương hiệu: | HongCe |
| Số mẫu: | HT-I22 |
| MOQ: | 1 bộ |
| giá bán: | Có thể đàm phán |
| Điều khoản thanh toán: | T/T, L/C |
| Khả năng cung cấp: | 30 bộ mỗi tháng |

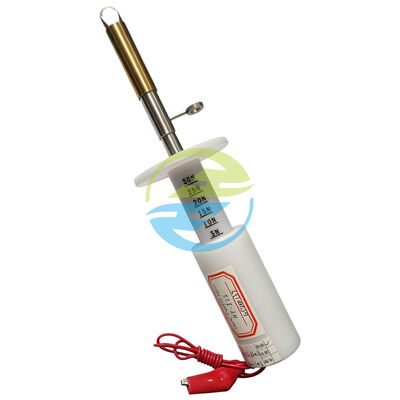

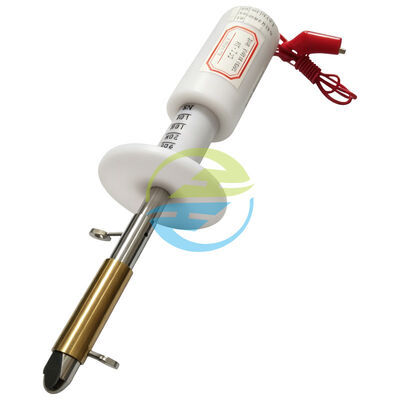

The IEC 60335 test finger sleeve is designed to evaluate the mechanical strength and protective performance of non-removable components in household appliances. It is widely used to verify whether protective components designed to prevent contact with hazardous internal parts, moving mechanisms, or humidity-sensitive structures can withstand the mechanical stresses encountered during normal use.
This test finger sleeve is manufactured by Hongce, a professional manufacturer of IEC testing equipment, and is designed strictly according to the requirements of IEC 60335 Figure 7 and GB4706.1 Figure 7, providing reliable and safe test results for laboratories, manufacturers, certification bodies, and quality control departments.
| Standard | Clause | Description |
|---|---|---|
| IEC 60335-1 | Figure 7 | Test nail requirements for household appliances |
| IEC 60335-1 | Clause 8.1 | Protection against access to internal parts |
| IEC 60335-1 | Clause 22 | Construction requirements |
| GB4706.1-2005 | Figure 7 | Mechanical strength requirements |
| IEC 61032 | Accessibility test requirements | Protection verification principles |
| IEC 60529 | Accessibility protection evaluation | Protection level verification |
| IEC 62368-1 | Accessibility assessment | Safety engineering requirements |
| IEC 60950 | Accessibility test requirements | Electrical equipment testing |
| UL Safety Standards | Accessibility evaluation | Product safety assessment |
| Technical Parameters | Specifications |
|---|---|
| Product Name | Test Finger Probe |
| Model | HT-I22 |
| Standard | IEC60335 Figure 7 |
| Reference Standard | IEC60335-1 Figure 7 |
| Reference Standard | GB4706.1-2005 Figure 7 |
| Probe Length | 80 mm |
| Finger Nail Angle | 37° |
| Test Finger Diameter | Φ12 mm |
| Applied Force Option 1 | 10N |
| Applied Force Option 2 | 20N |
| Applied Force Option 3 | 30N |
Q1. What standards does this Test Finger Probe comply with?
It complies with IEC60335 Figure 7 and GB4706.1 Figure 7 requirements.
Q2. What products can be tested?
It is suitable for household appliances, electrical equipment, and non-removable protective structures.
Q3. What forces can be applied?
The HT-I22 supports:
Q4. Is customization available?
Yes. HongCe provides customized IEC testing solutions.
Q5. Are calibration services available?
Calibration certificates can be provided upon request.
Q6. Can it be used in certification laboratories?
Yes. It is widely used by certification bodies and testing laboratories.
HongCe is a professional manufacturer specializing in IEC Test Equipment and electrical safety testing instruments.
Our capabilities include:
With years of experience in international compliance testing equipment, HongCe has supplied customers across Asia, Europe, the Middle East, South America, and Africa.
